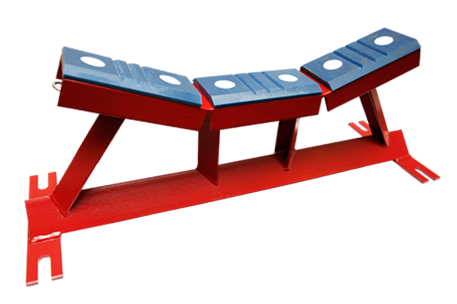

The Slidler™ by CanGlide®

Product Specifications


Width 45 cm to 150 cm (18" to 60")
Speed Conveyor Speeds up to 180 m/m (600 FPM)
Temperature Operating Range -80°C to 220°C (-112° F to 425° F)
Frame Design determined by Material Weight, Compostion
Industries Mining, Pulp & Paper, Salt, Sawmills, Potash, Peat Moss, Food
Applications Cartridge Design and Formulation according to Material Transported. Available in anti-static or FDA approved.
Change Out Quick - Change Cartridge Design

Product Description


The Slidler™ concept is fundamentally different to the idlers, or rollers, used for years to support and guide the belts used in trough conveyor systems. The dusty, corrosive, and abrasive operating conditions of trough conveyors cause the idlers to seize up – causing belt wear and guiding problems.

The Slidler has no moving parts, and the smooth surfaced cartridges which support and guide the belt, eliminate these problems.  Depending on the application, the Slidler extends operating life two-to-five times that of conventional idlers. As a result, maintenance costs are considerably reduced; and with the patented fastening system, eventual replacement cartridges can be installed in a matter of minutes.

Operator safety was also an important consideration in the Slidler™ design. By eliminating the pinch point  formed between the turning idler and the belt, the risk of hand and arm injuries is considerably reduced.

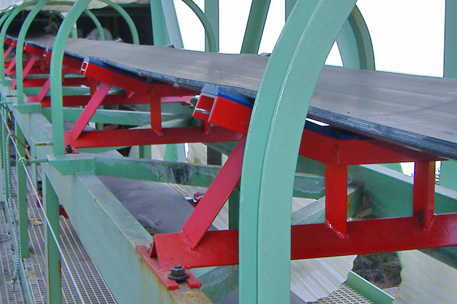

The product is operating successfully in various industry sectors including mining, pulp and paper, potash, sawmill and others.

Industries using the Slidler™


Manufacturing
Mining
Sawmills
Food Industry
Pulp & Paper
Aggregates
Peat Moss
Power Plants
Chemical

Better... Safer.


The Slidler™ design reduces the risk of injury which can occur at the ingoing 'pinch point' where the conveyor belt converges with the idler . With its flat surface, non-rotating design, the Slidler™ minimizes the incidents of hand and arm pinch point injuries. The Slidler™ also reduces the risk of airborne dust ignition in sawmills and other process-generated dusty environments.
Did you know?
There are currently CanGlide Slidlers™ being used that were installed in 2005.

CanGlide\'s Slidler™ can extend operating life two to five times that of the idlers, as well as significantly simplfying and reducing conveyor belt maintenance.

Slidlers™ are very easy to maintain, replacing a Slidler is a quick process that requires no tools.

The Slidler can withstand the harshest environmental conditions, from -80°C to 220°C (-112°F to 425°F).

>Read More
Product Video

Date Recorded: February 2013
Who is using the Slidler™ ?
Sawmills Manufacturing Peat Moss Chemical Pulp & Paper
Contact us now to see how we can improve your conveyor systems.
